Container Elements

Exploring wireframes, prototypes and the container elements used in modern web design (HTML5 and CSS3).

Learning Goals

At the end of this Tutorial, you will be able to:

  • Understand the differences between a wireframe and a prototype, as those terms are used in front-end design.
  • List and describe the container elements of a web page used in modern web design (HTML5 and CSS3).

Wireframes and prototypes

Creating wireframes and prototypes are typically the first two steps in developing a user interface for a web project. Their purpose is to establish a web page’s basic layout and content before working with HTML and CSS code.

About wireframes

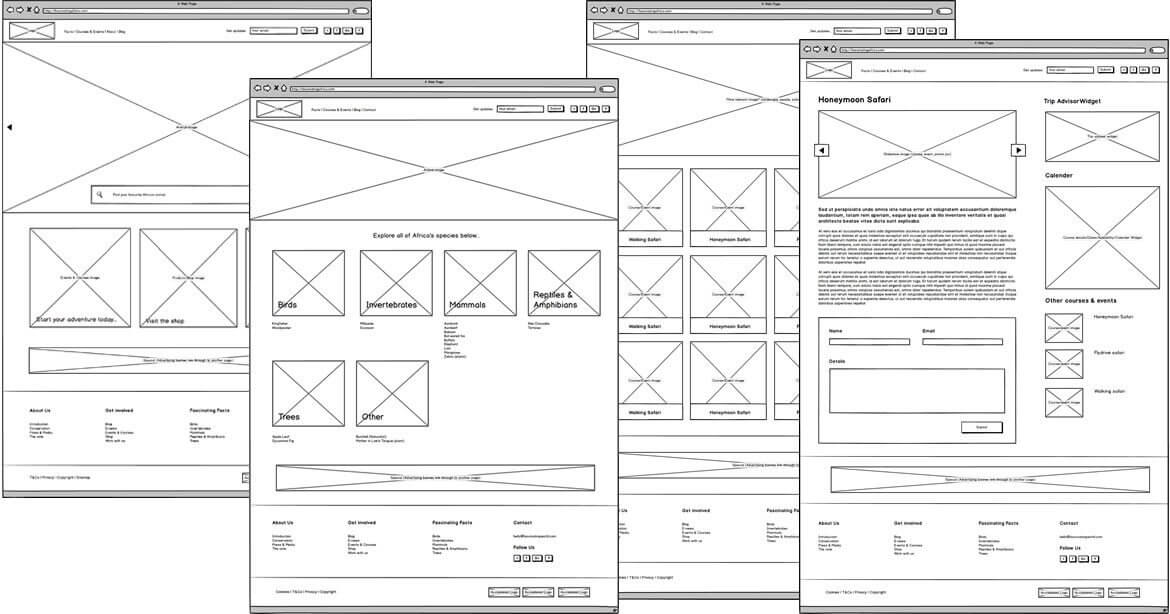

Wireframes are simply rough sketches of a web page, often drawn by hand. They are said to be low-fidelity.

Introduction to the Box Model

A number of software products exist to support the creation and sharing of wireframes. One such as BalsamicIQ.

About prototypes

In contrast, a prototype is a high-fidelity mockup of a web page. Typically, it contains various assets such as images and videos, final text, and ‘clickable’ interactive elements such as buttons and forms.

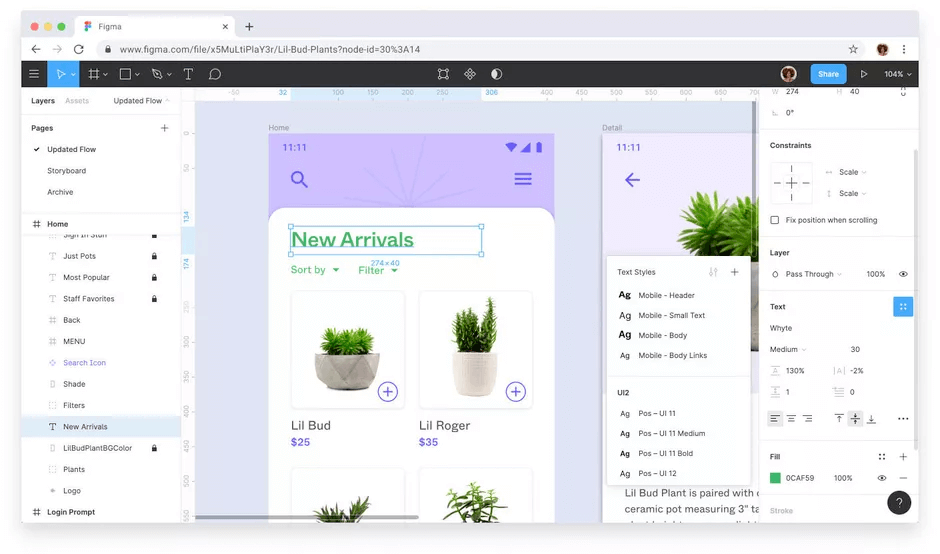

A popular software product for prototyping web pages and other user interfaces is Figma.

figma

Web page layout with container tags

In the Working with HTML Tutorial, you learnt that the simplest possible HTML file has two main parts – the <head> and <body> – and looks as shown below.

screenshot

Modern web design (HTML5 and CSS3) uses a number of so-called container tags for the content within the <body> of a web page.

  • Unlike tags such as <h1>, <h2> and <p>, container tags have no default CSS styles. For example, they do not change the size, appearance or space around text or images.
  • The purpose of container tags is not to style web page content but to structure or organise it into ‘blocks’ or ‘chunks’.
storage

Container tags in a web page play the same role as containers or organisers for documents, food items, clothes, and other physical objects in the real world.

The four major container tags are listed below.

  • <nav>
  • <header>
  • <main>
  • <footer>

All four tags are placed within the <body> ... </body> of a web page.

Introduction to the Box Model

You will sometimes see container tags in HTML referred to as semantic tags.

Let’s look at these four container tags in more detail.

The <nav> tag

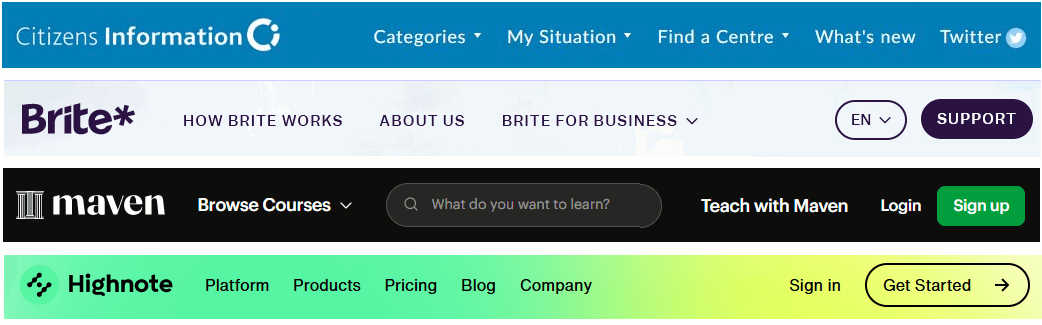

This tag name is short for navigation. It is most commonly located at the top of a web page where it contains a menu of hyperlinks and the organisation’s logo.

Introduction to the Box Model

Visual designers refer to this list of menu hyperlinks as the navbar.

The <header> tag

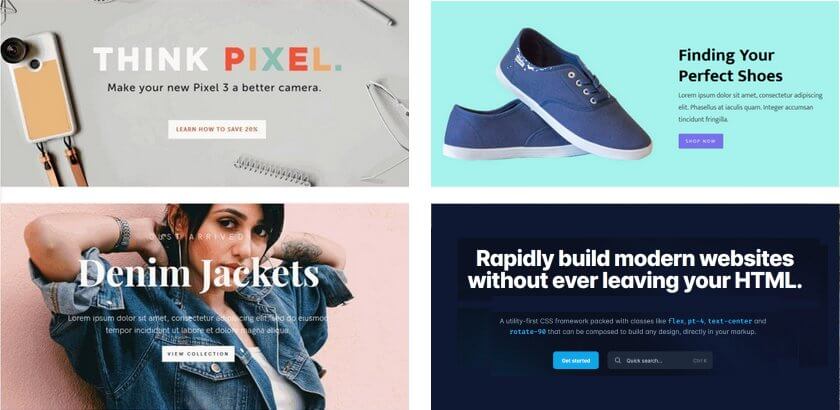

This is generally positioned under the <nav> element at the top of a web page, and usually contains the <h1> heading and some introductory text.

Introduction to the Box Model

Visual designers refer to this part of a web page as the hero block.

The <main> tag

As its name suggests, this holds the primary content of a web page. In simple terms, this means any content is that should not be in the <nav>, <header> or <footer> containers.

The <footer> tag

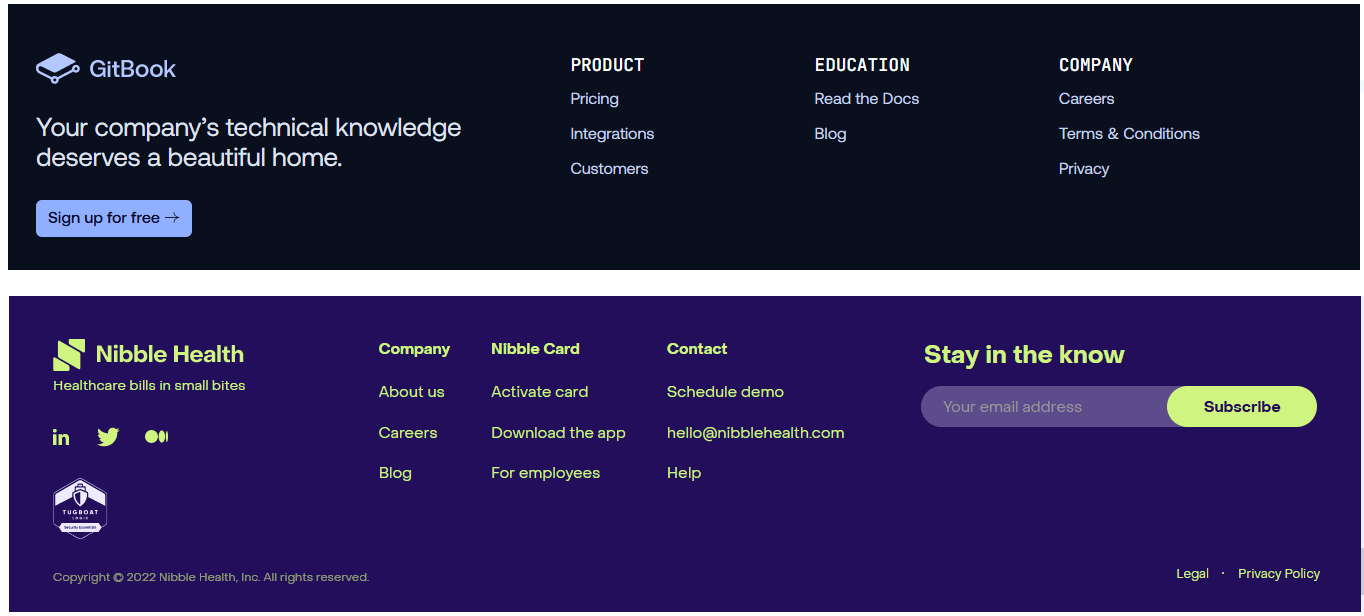

Located at the bottom of a web page, this contains such content as the organisation’s details, links to related web pages, and legal and copyright information.

Introduction to the Box Model

About <section> tags and the <main> tag

In modern web pages, a number of different layouts are often applied to the content within the <main> container. In other words, different parts of the <main> content will look very different from one another.

For example, they may have different background colours and different numbers of columns.

This is achieved by sub-dividing the <main> container with another container tag named <section>.

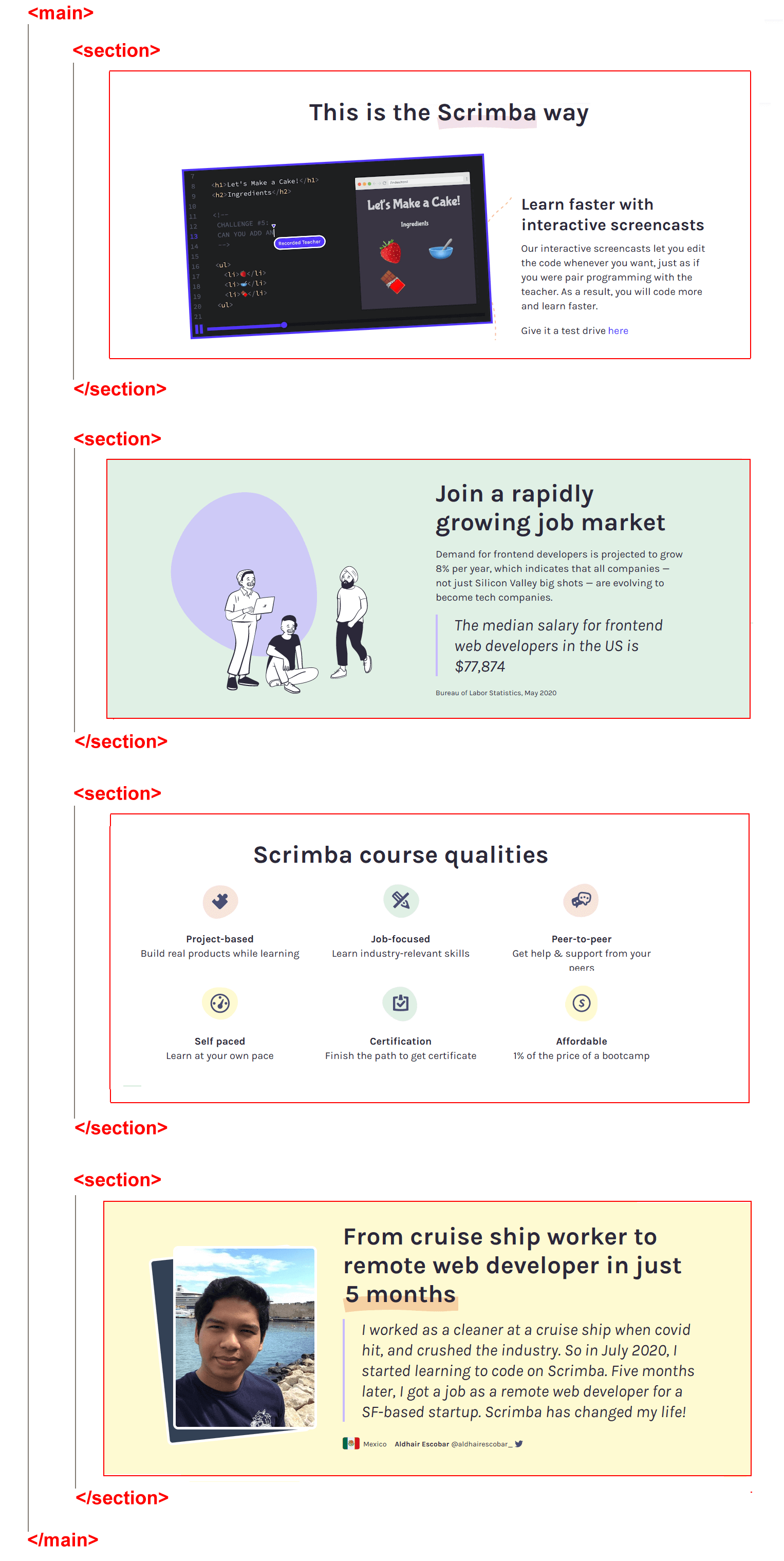

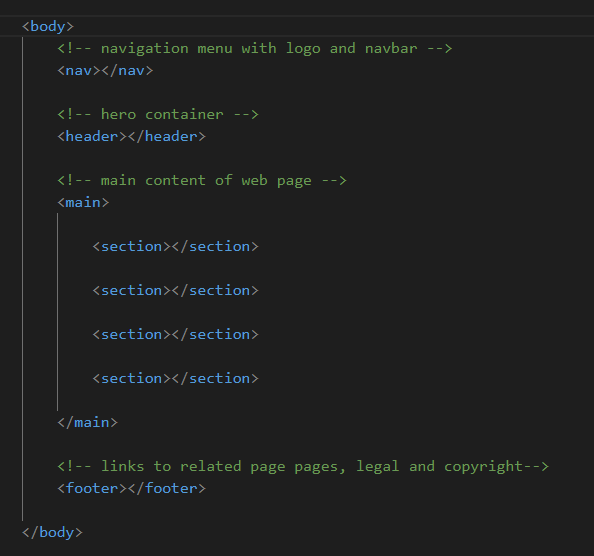

In the web page outline <body> below, you can see that the <main> container is further subdivided into four smaller <section> containers.

sections

Each of the four <section> containers can now have different CSS styles applied to it. See the example below.

screenshow

Creating your third sample web page

You will now create a third web page. This will have one <main> tag and six <section> tags.

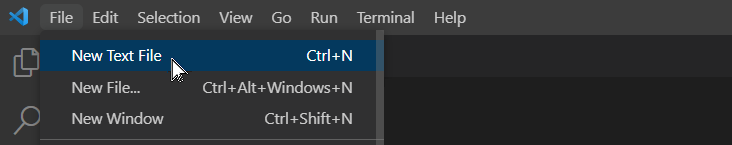

  1. In VS Code, choose the File | New Text File command. Introduction to HTML

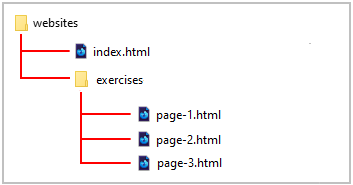

  2. Choose the File | Save As... command, and save your file in the 📁 exercises sub-folder of your 📁 websites folder with this name:   page-3.html   Your files and folder structure should now look as shown below. Introduction to HTML

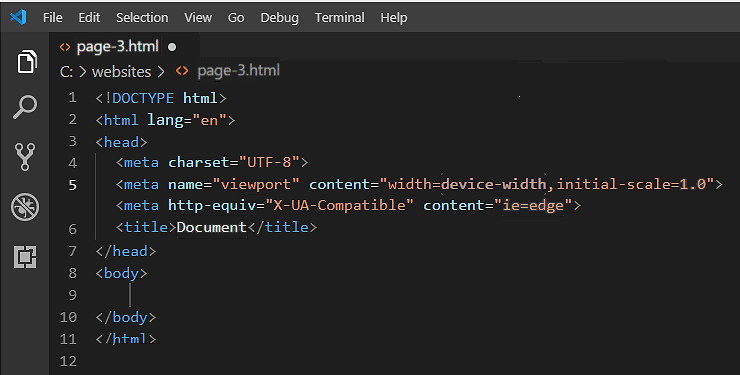

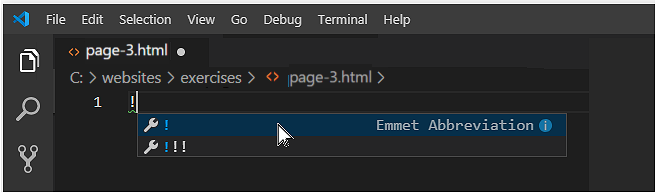

  3. In VS Code, click anywhere in your empty web page and type the exclamation mark ! (Shift key and number 1 key). Introduction to HTML After one or a few seconds, the Emmet Abbreviation menu appears. Click on the first option from the menu. Or press either the Tab or Enter key. Introduction to HTML VS Code now fills your new file with the basic HTML structure. Introduction to HTML

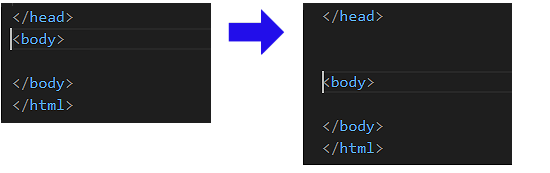

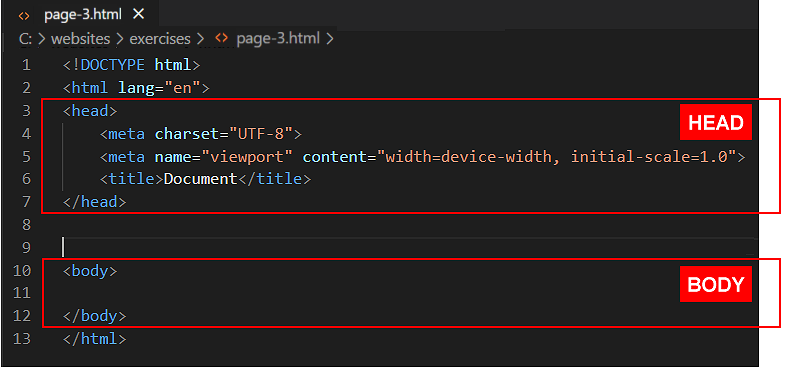

  4. To make your web page easier to read and edit, add some blank lines after the closing </head> tag and before the opening <body> tag.   Click just before the <body> tag and press the Enter key one, two or three times. Introduction to HTML When you look at the HTML of your web page on the VS Code screen, you can now see visually ‘at a glance‘ where the <head> ends and the <body> begins. Introduction to HTML
  5. Update the <head> of your new web page by copying-and-pasting the following details.
    <title>Sample Web Page with Sections</title>
    <meta name="description" content="A sample web page with multiple sections.">

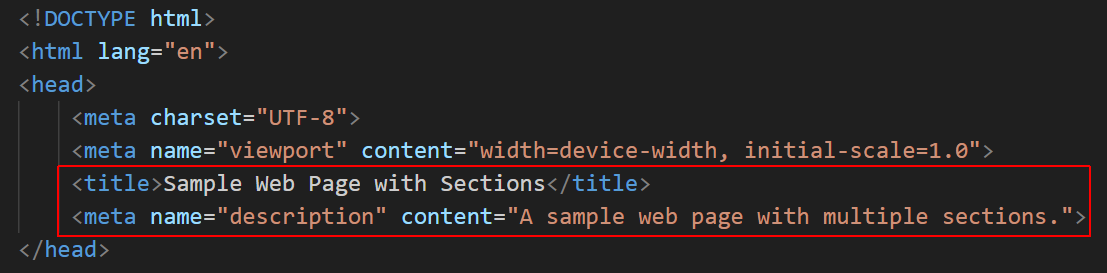

    The <head> of your web page should now look as shown below. screenshot
  6. When finished, save your page-3.html file.

Adding <main> and <section> tags

Your next task is to add container tags, formatting tags and text content to your page-3.html web page.

  1. In the page-3.html file, after the opening <body> tag, copy-and-paste the following HTML tags:
    <main>
       <section>
          <h2>Nice section heading</h2>

          <p></p>

          <p></p>

       </section>
    </main>

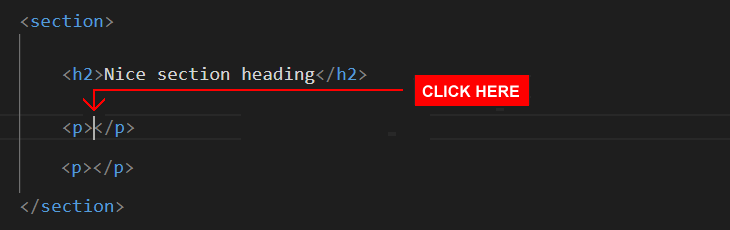

  2. Click inside the first pair of empty <p> ... </p> tags. screenshot

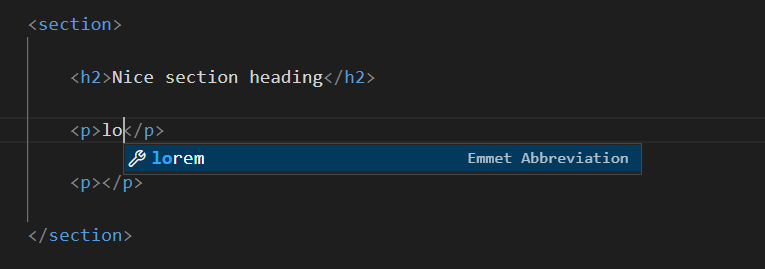

  3. Type the letters lo
  4. When the Emmet Abbreviation menu appears after one or two seconds, click on it or press either the Tabr or Enter key. Introduction to HTML VS Code now creates 30 words of Lorem Ipsum placeholder text.   Note that you can change the number of words of Lorem Ipsum that are generated by typing a number after the word “lorem". For example:   lorem40 or lorem12
  5. Repeat this step for the second empty paragraph.
  6. Select the <section> block, and copy it five times down the page.   You should now have six <section> blocks of content in your web page.
  7. Near the end of the web page, inside the final closing </section>, copy-and-paste the following line.
    <p><a href="../index.html">Back to Home page</a></p>

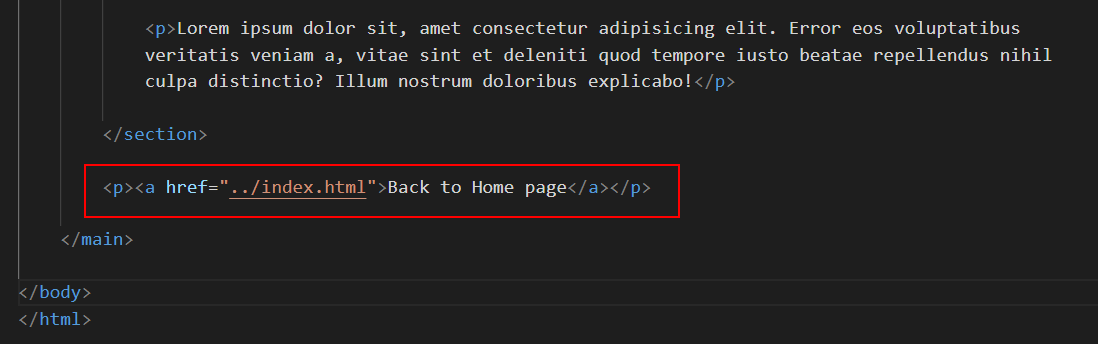

    The bottom of your web page should now look as shown below. Introduction to HTML

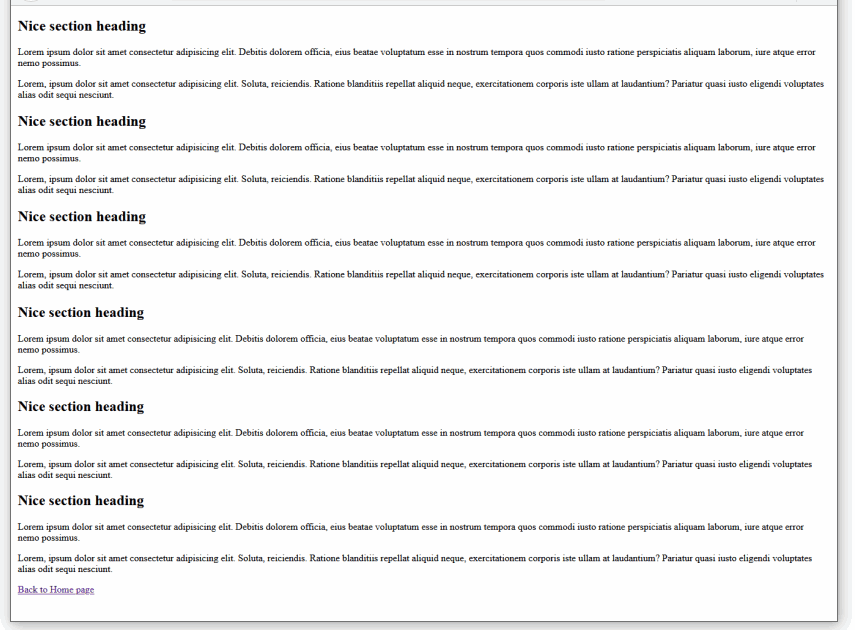

  8. When finished, save your page-3.html web page file. In your web browser, it should look similar to the following. screenshot
  9. Open your home index.html web page, copy-and-paste the following hyperlink after the current two, and save the file.
    <p><a href="exercises/page-3.html">Web Page with Sections</a></p>

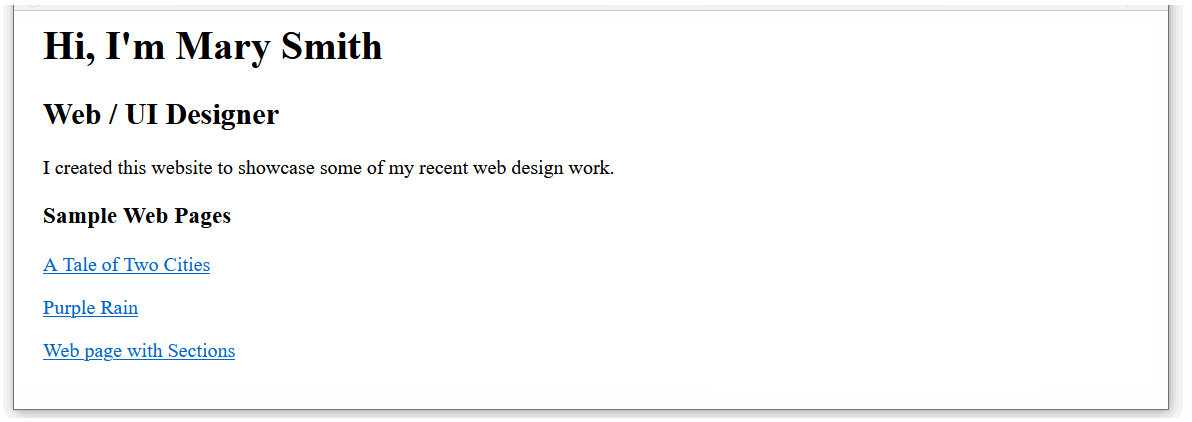

    Your updated home page should now look as follows in a web browser. screenshot

✅  All done.

Uploading your web page to GitHub

Your final task is to upload your page-3.html web page to your account on GitHub.

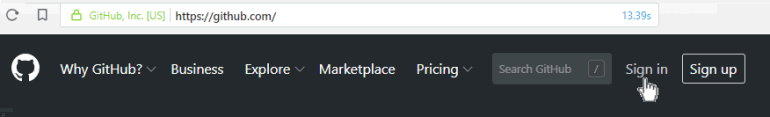

  1. Open a new tab in your web browser and go to GitHub.com. If you are not already signed in to your GitHub account, sign in now. github-signin

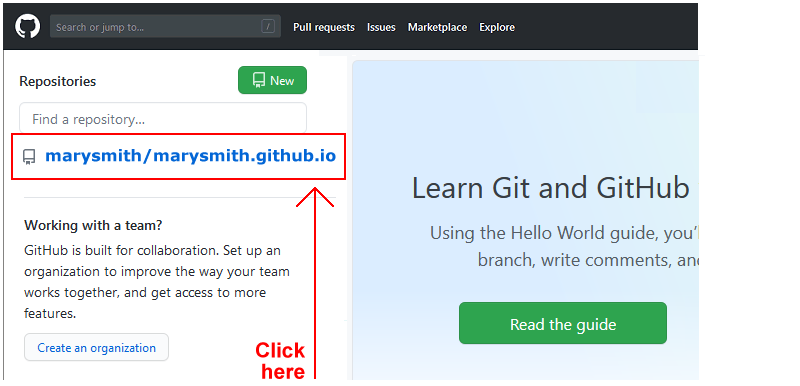

  2. On your GitHub home page, click the name of the repository (‘repo’) that holds your web pages. Its name will look as follows, where username is your chosen username on GitHub.   username.github.io github-signin
  3. On the next GitHub screen displayed, click the exercises folder to open it. This should already contain your uploaded page-1.html and page-2.html files.

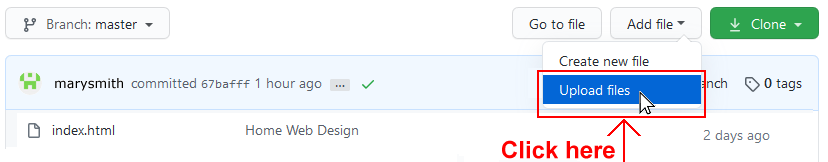

  4. Near the right of the screen, click the Add file button and choose the Upload files option from the dropdown list displayed. Project Animation Google Fonts

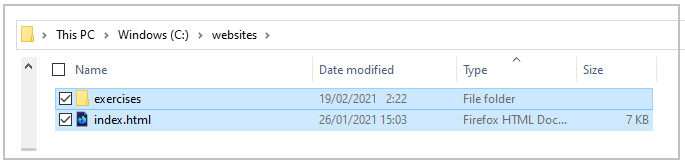

  5. In File Explorer (Windows) or Finder (Apple Mac), drag-and-drop your index.html file and your 📁 exercises sub-folder to upload them to your repository on GitHub. Introduction to HTML
  6. Scroll down to the bottom of the GitHub screen, and accept or edit the short message (Add files via upload) in the Commit changes box.

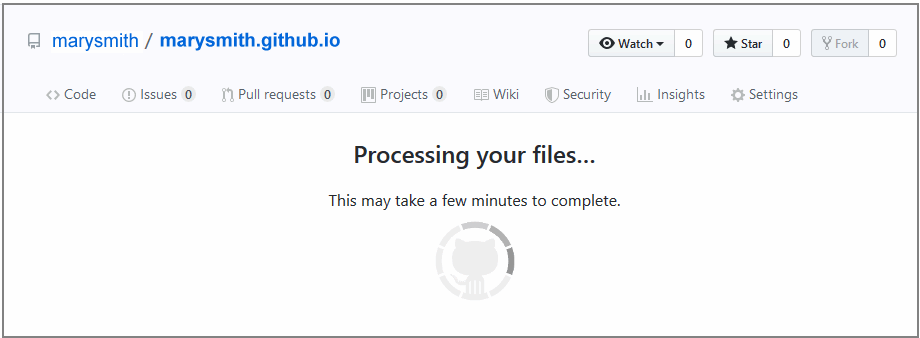

  7. Finally, click the green Commit changes button to upload your entire exercises sub-folder and all the files it contains. Project Animation Google Fonts

Your updated web pages are now published on GitHub at web addresses similar to the following, where username is the username you have chosen for your GitHub account:

https://username.github.io/index.html
– or simply –
https://username.github.io
https://username.github.io/exercises/page-3.html

It may take a few minutes for your uploaded files to appear on GitHub.
